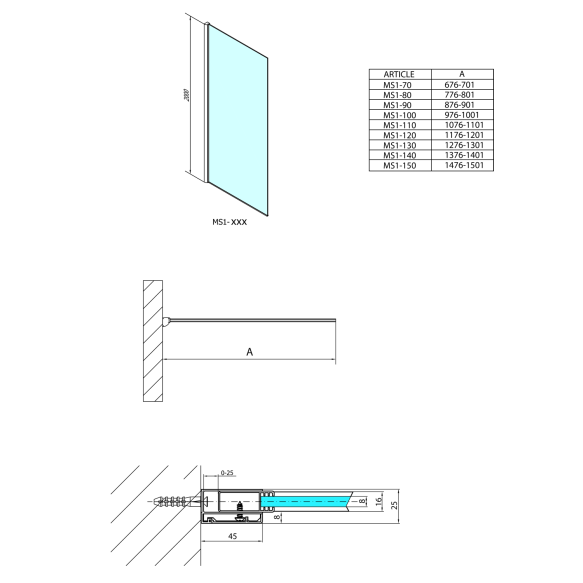

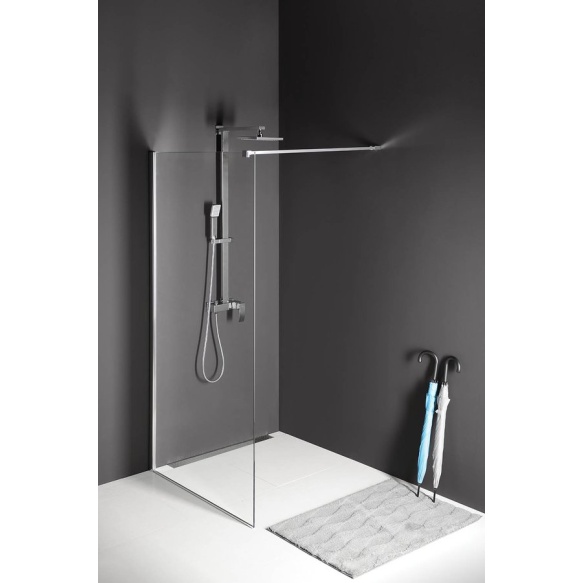

Module MS1 - One-piece fixed screen for wall installation

• Installation dimension: 776-801 mm

This module cannot be combined with any side wall, it is a separate glass and wall profile with 0-30 mm adjustment. The glass is fixed to the floor with silicone.

The wall is available in nine widths, according to the size it is necessary to buy a strut:

• For dimensions 70-90 cm, a vertical strut MSBR1, a corner strut MSBR2 or a longitudinal strut MSBR3 can be used (when installed in a niche)
• for dimensions 100-150 cm it is necessary to use only the strut perpendicular MSBR1 or longitudinal MSBR3 (when installed in a niche)
• When installing two solid walls in the corner, the MSBR1 strut in combination with the MSBR4 strut is recommended

The modular solution allows many combinations of shower enclosure positions , examples of combinations:

The Modular shower screen concept offers glass modules with profiles for easy installation. The glasses are provided with an Antidrop surface treatment on both sides, which facilitates cleaning. The glass height of 2000 mm and the thickness of 8 mm are preserved. The glasses are equipped with an aluminum profile at the bottom, which gives the screens an elegant look, seals better and facilitates handling and installation.

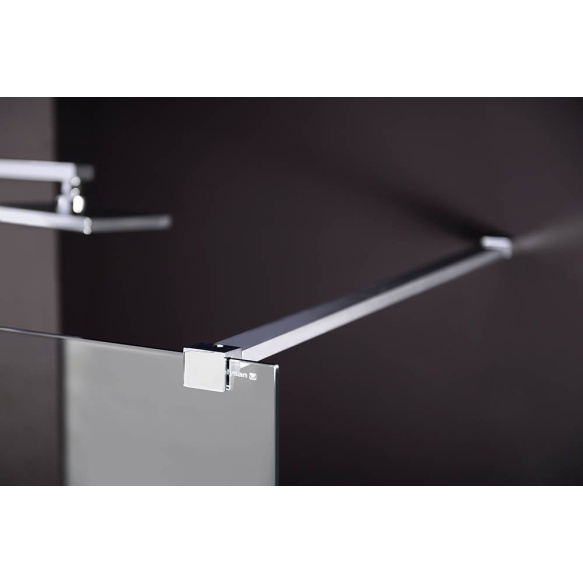

Depending on the dimensions of the glass, it is always necessary to purchase the necessary strut to ensure the stability of the screen. The struts are made of stainless steel and can be shortened as desired, the cut is hidden in chrome-plated end pieces (except for the corner struts, which cannot be modified).

The wall profile allows tolerance settings
0-30 mm

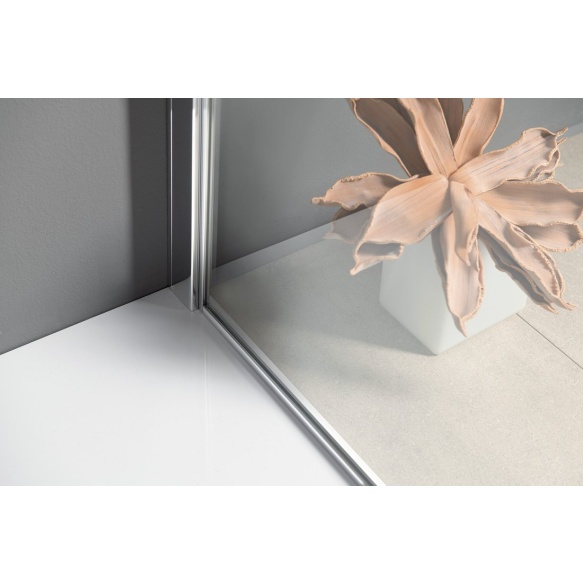

The glasses have an aluminum profile underneath, which gives the screens an elegant look, seals better and simplifies installation.
