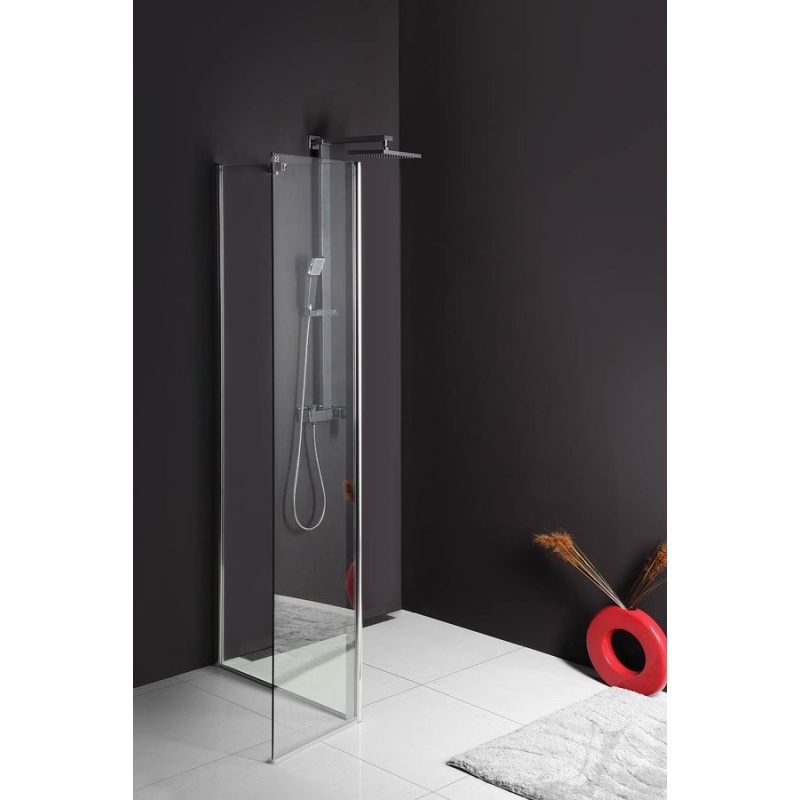

MODULE MS3 - Fixed wall (part A)

• Wall mounting
• For connecting an additional rotary panel

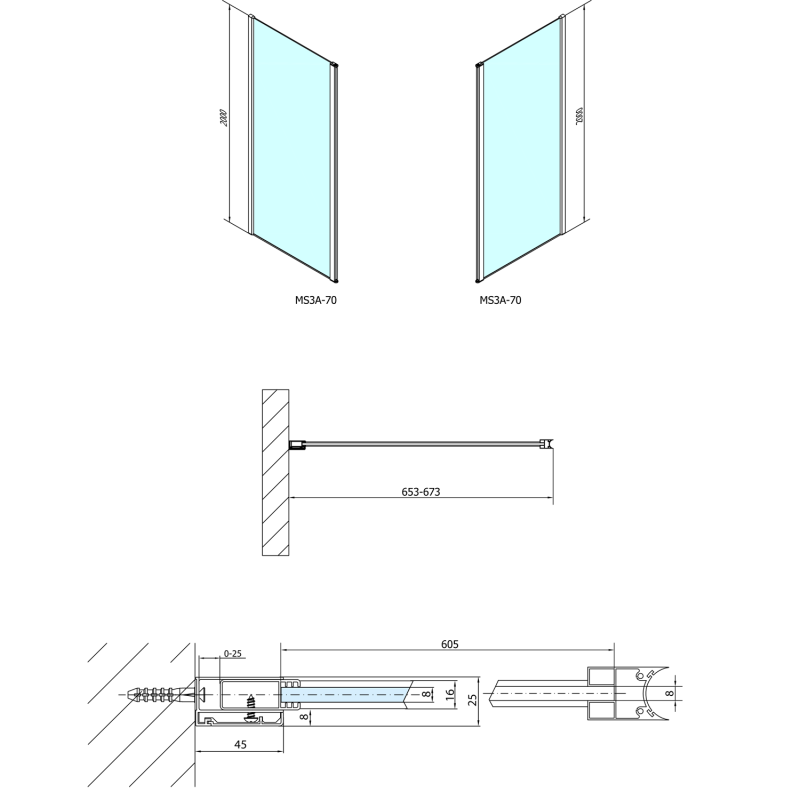

• Installation dimension: 653-673 mm

According to the dimensions of part A it is necessary to buy a strut:

• For dimensions 70-100 cm, a vertical strut MSBR1 or a corner strut MSBR2 can be used
• For a size of 120 cm, it is already necessary to use a vertical strut MSBR1

In order to create a two-part "L" -shaped screen, it is necessary to purchase an additional rotating panel MS3B in addition to the solid wall.

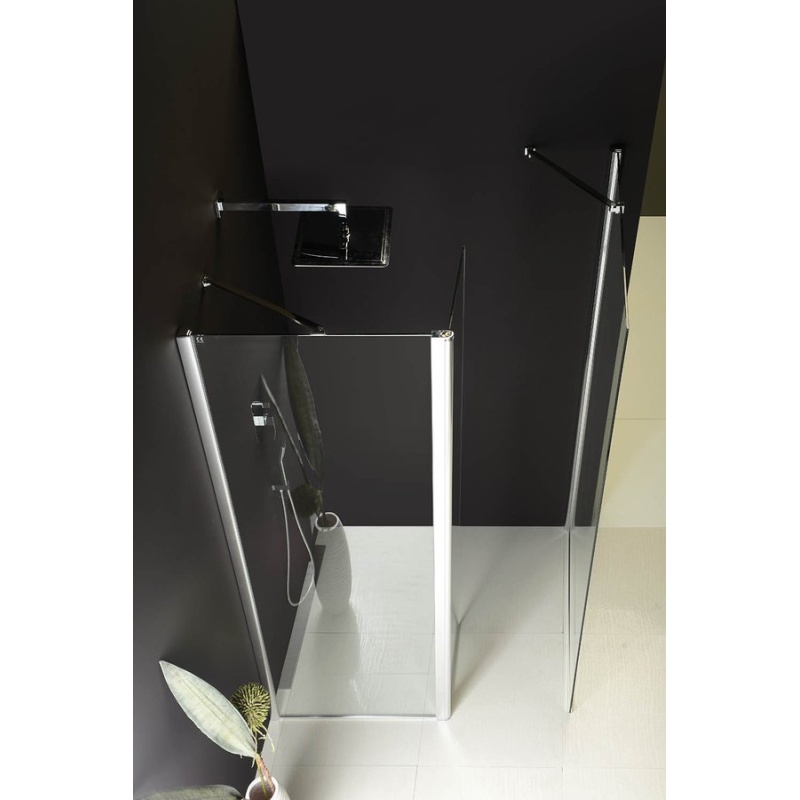

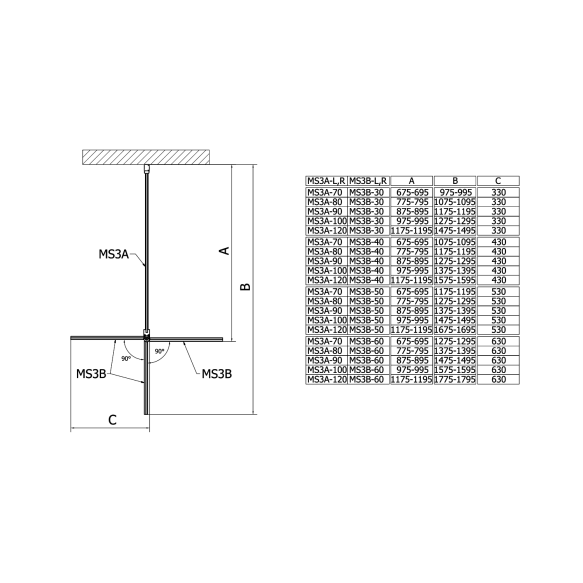

Characteristics of the overall Module MS3 - Two-part "L" shaped screen - solid wall with additional rotating panel

This module consists of two parts - A and B.

Part A:

• It is a solid wall made of clear glass with a wall profile with 0-30 mm adjustment for wall mounting
• It is fixed to the floor with silicone
• Available in five widths

Part B:

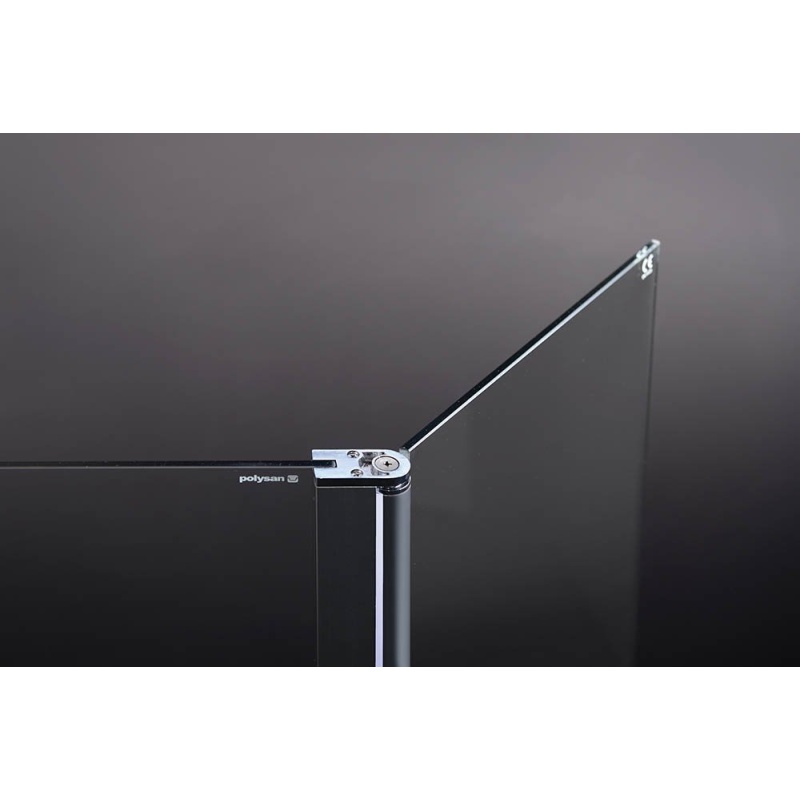

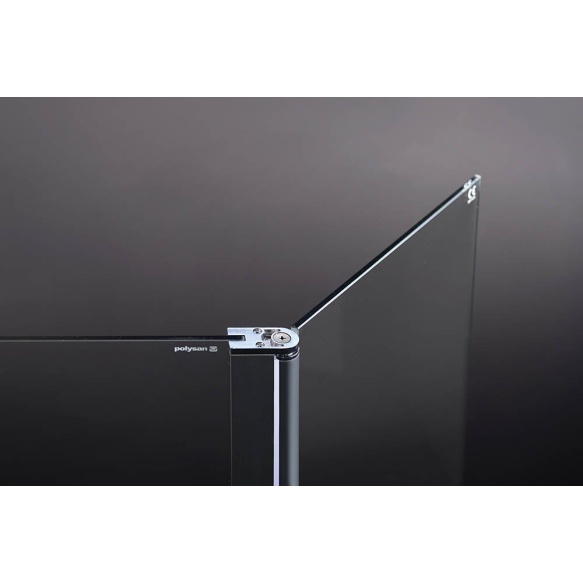

• There is an additional swivel panel with a connecting swivel profile of 180 °

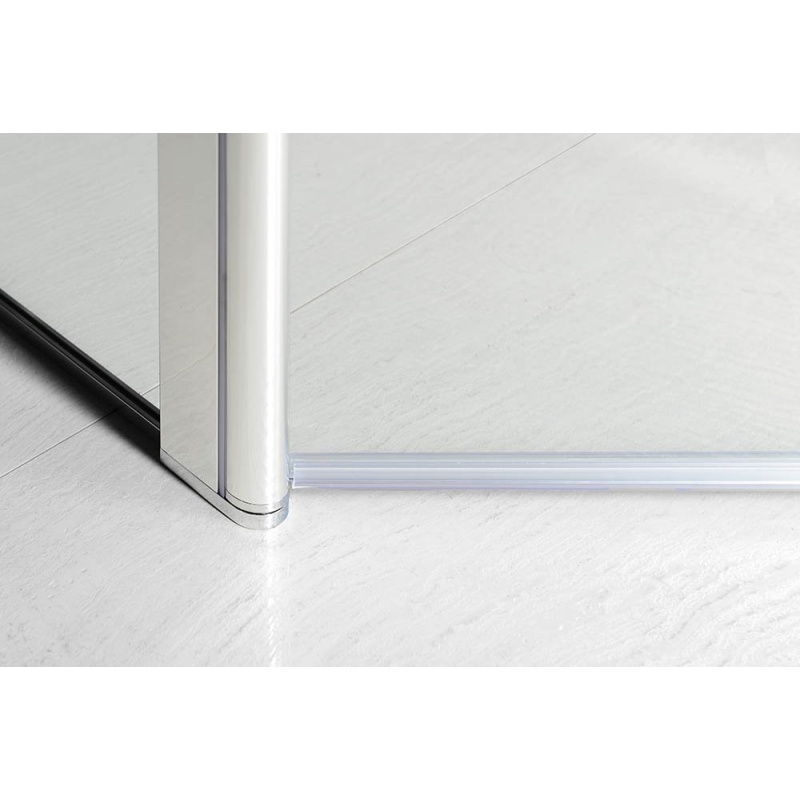

• The lower edge of the rotating part is provided with a silicone seal
• Available in four sizes

In total, Module 3 can be combined into 20 variants.

The rotating part of the module 3 is provided with a silicone seal against water leakage	The 180 ° rotating profile allows you to enlarge the entrance space

Animation:

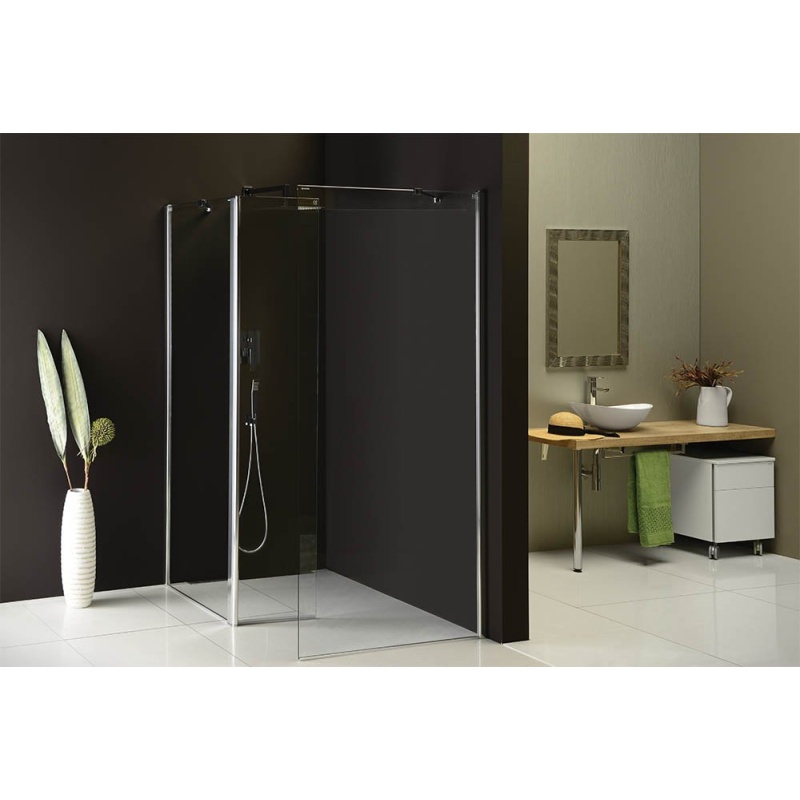

The modular solution allows many combinations of shower enclosure positions , examples of combinations:

The Modular shower screen concept offers glass modules with profiles for easy installation. The glasses are provided with an Antidrop surface treatment on both sides, which facilitates cleaning. The glass height of 2000 mm and the thickness of 8 mm are preserved. The glasses are equipped with an aluminum profile at the bottom, which gives the screens an elegant look, seals better and facilitates handling and installation.

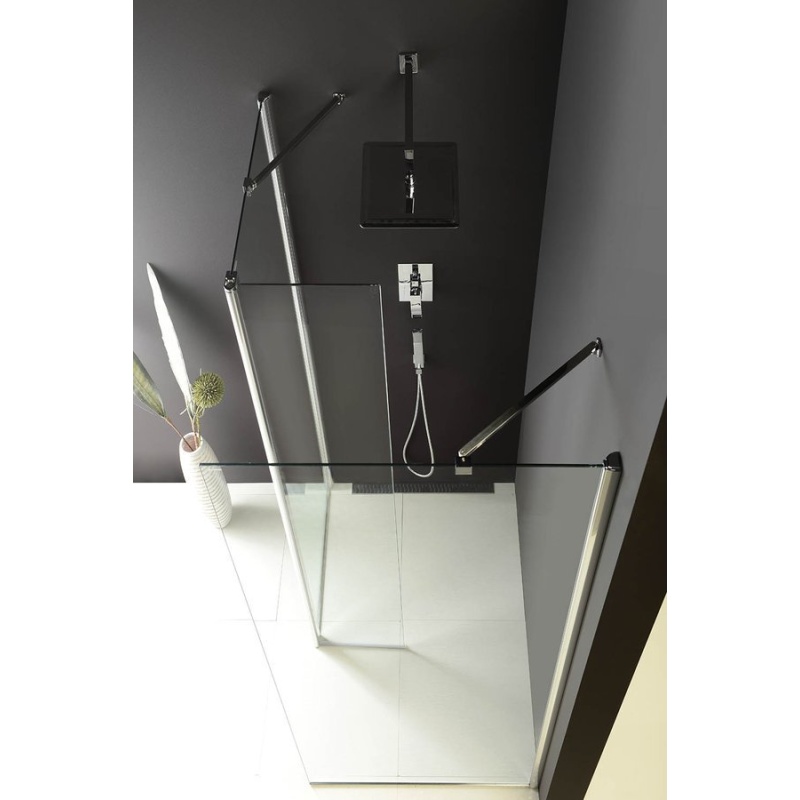

Depending on the dimensions of the glass, it is always necessary to purchase the necessary strut to ensure the stability of the screen. The struts are made of stainless steel and can be shortened as desired, the cut is hidden in chrome-plated end pieces (except for the corner struts, which cannot be modified).

The wall profile allows tolerance settings
0-30 mm

The glasses have an aluminum profile underneath, which gives the screens an elegant look, seals better and simplifies installation.
